LOCK IN A MORE SECURE CARD PRINTING SOLUTION. NUVIA FITS YOUR SPACE, YOUR NEEDS, AND YOUR BUDGET.

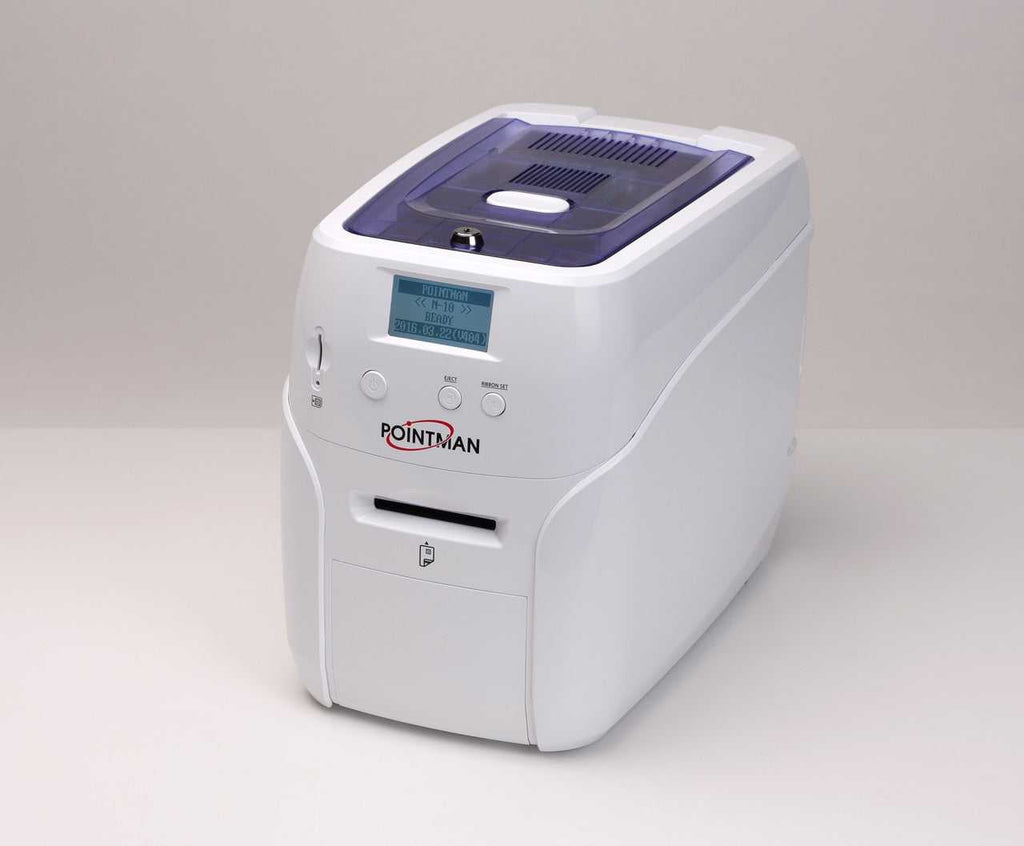

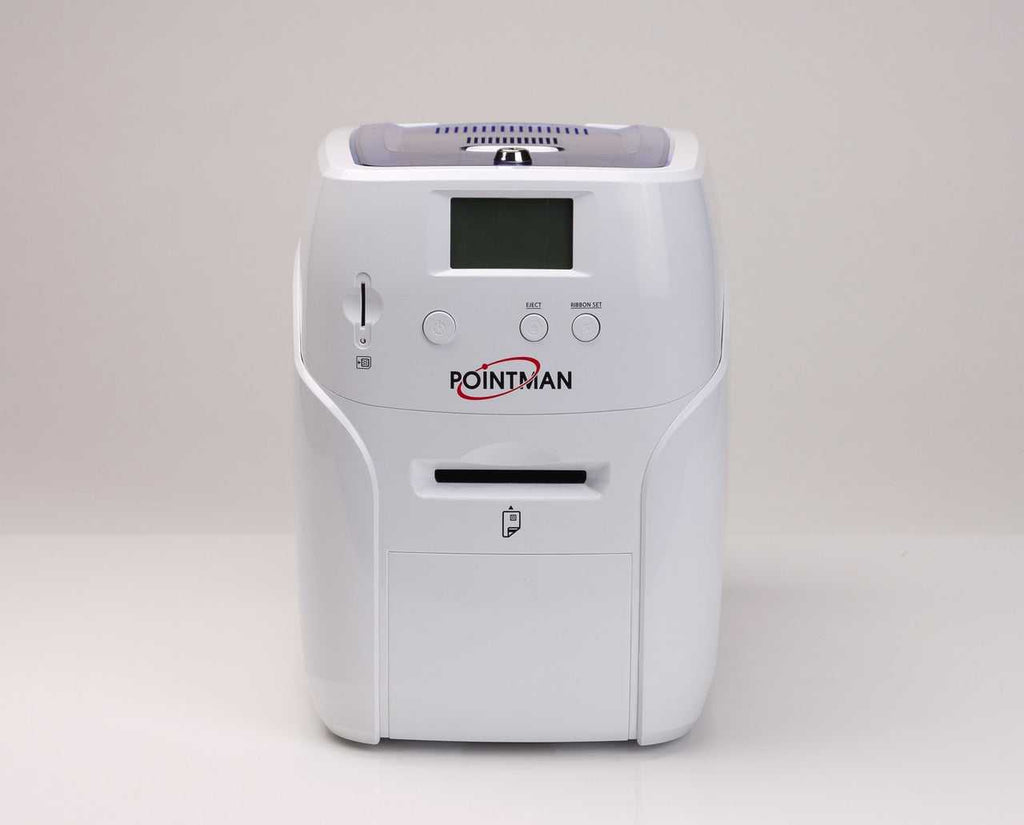

You can simplify your card printing without giving up quality and security. The POINTMAN NUVIA direct-to-card printer produces vibrant color, edge-to-edge printing, and security features to issue professional-looking cards instantly.
• ID badges
• Access control cards
• Bank cards
• Gift cards
• Loyalty cards
• Membership cards
LOCKED ENCLOSURES. Protect unauthorized access with multiple locks and Kensington lock slot.
SECURE ENCODING. Magnetic stripe (ISO and non-ISO), contact smart card encoding (EMV, ISO 7816), and contactless smart card encoding (ISO and Mifare).
FAST PRINT SPEED. 190 cards/ hour (full-color, single-sided), and up to 140 cards/hour (full-color, dual-sided).
COMPACT. Lightweight design with the small footprint allow you to operate the Nuvia card printer where you need it most.
FLEXIBLE FEEDING OPTIONS. Innovative dual hopper lets you load up to 200 cards or 2 different types of cards to avoid reloading.
MOBILE ACCESS. Design and print right from your smartphone or tablet with our mobile app.
USER-FRIENDLY. Simplicity is built into the design, operation, and user interface.
READY TO RUN. Your Nuvia comes loaded with Card DesignerTM software and printer driver already installed.
RELIABLE. Pointman offers unmatched protection, with a 5-year warranty on the printer and 3 years on the printhead.
•Direct-to-card Dye-sublimation/Resin thermal transfer
•Single or Dual sided printing
•Additional hopper for the 2nd type of cards or the extend
•Full-color and monochromeprinting capability
•300 dpl (11.8 dpm), 16.7 Million Colors
•Card Type: PVC and composite PVC Cards
•Card Thickness: 15 mil ~ 40 mil card
•Card Format ISO CR80-ISO 7810 (3.370 in x 2.125 In)
-Input hopper: 100 cards(30 mil)
-Up too 200 cards with dual hopper option
-Output hopper: 60cards(30 mil)
-Manual single feed: 1 card input
*Input/output hopper is not available for N10.
Magnetic Stripe encoding
-iSO7811 (Track 1,2,3), coercivity (HiCo & LoCo)
Contact smart card encoding
-EMV Level 1 (PC/SC, serial)
Contactless smart card encoding
-IS014443A/B, IS015693, Mifare
•Min/Max operating temperature ( 5 / 40̊ C), (41 / 104 F)
•Humidity: 20% to 65% non-condensing
•Min/max storage temperature (-10 / 60̊ C), (14 / 140 F)
•Storage humidity: 20% t o 70% non-condensing
•Buit in 10/100 Ethernet IP Port (optional)
•YMCKO: 200 prints/roll
•YMCK0-K: 170 prints/roll
•Half YMCKO: 400 prints/roll
•KO: 500 prints/roll
•Monochrome ribbon: 1000 prints/roll
DRIVER & SOFTWARE
•Windows Vista, Windows 7 & 8 & 10,
-Windows 2003/2008 server
-”Card Designer“ for Easy Printing
-True Type Fonts via Windows Drivers
•4-line white LCD indicates status of printer
•LEDs notificatiions of empty/low level ribbon, empty input hopper, error
•Quick Start Manual
•CD-ROM (driver, software and user manual)
•USB printer cable
•Cleaning roller and card (CR-80)
•Power supply and cord
-(T-card 2 pcs, CR-80 Cleaning Card 2pcs, Alcohol Swab 3 pcs)
-(T-card 3pcs, CR-80 Cleaning Card 5 pcs, Alcohol Swab 7 pcs, Thermal Cleaning Pen 1 pc)
• CR·80 Cleaning Card, Thermal Print Head Cleaning Pen
-Single Side: 180 ~ 200 cards / hour
-Dual Side: YMCKOK 140 / hour YMCKO 95 / hour
Mono printing -800 cards / hour
Input-AC 100V~240V, 50/60HZ
Output-DC 24V, 2.5A
Kensington physical lock slot
• Hopper lock (N20/N30)
• Top cover lock
•FCC Class A.
•CE (EN 55022 Class A, EN 55024 ), CCC, KCC
*under specific condition
•Printer Head 3-years
For a reliable, easy-to-use card printer that delivers a security card printing solution, contact your authorized Pointman representative to schedule a demo of the Nuvia card printer.
